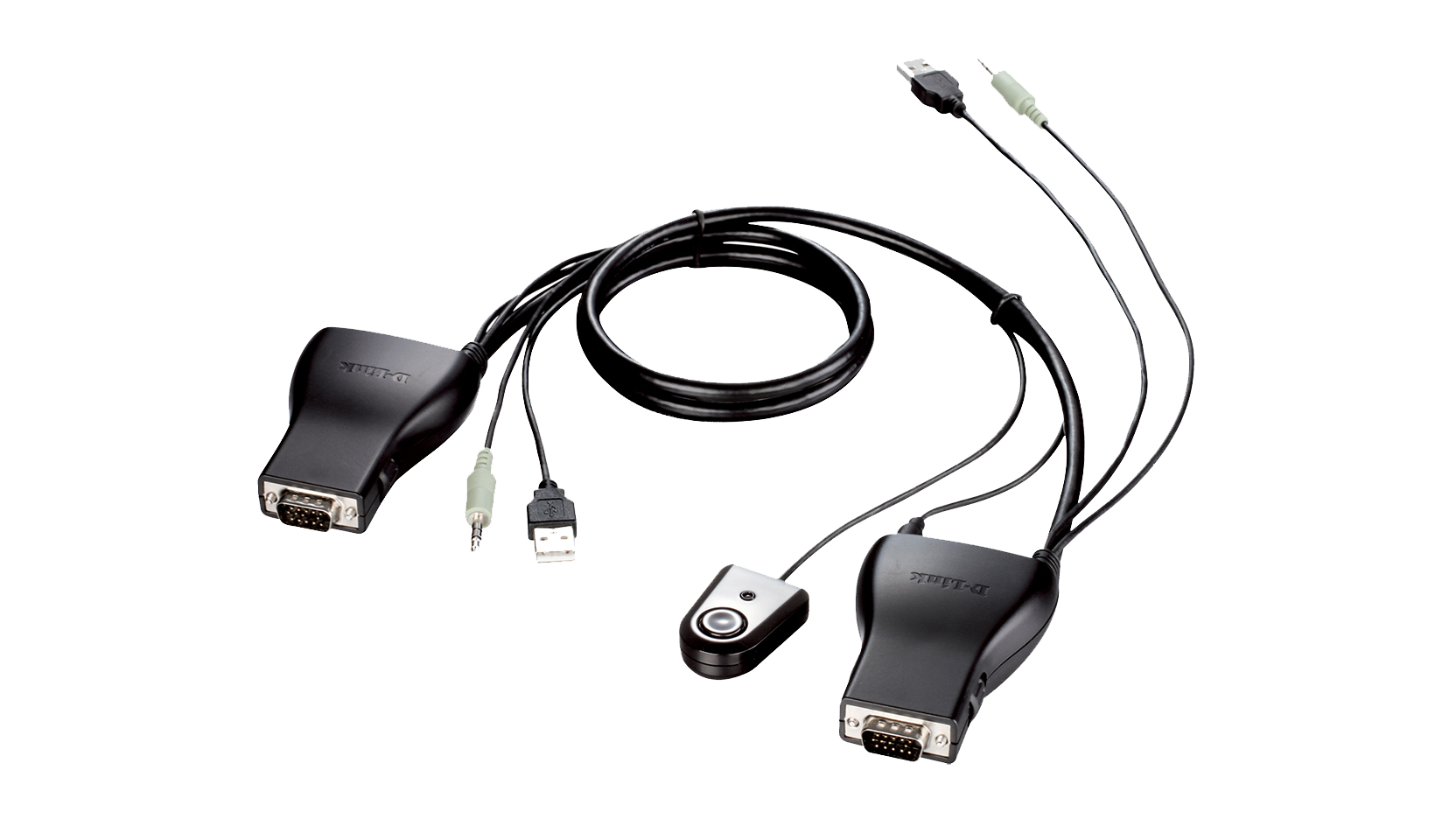

D-Link 2 ports USB KVM switch with cable & Audio support (EN) (DKVM-222)




2500  ден

10452
+

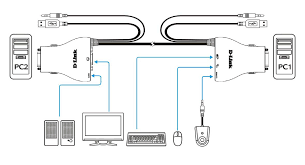

The 2-Port USB KVM Switch with Audio Support allows you to control two PCs from a single USB keyboard, USB mouse, and VGA monitor. Audio is also supported, allowing the two connected PCs to share a set of speakers via a standard 3.5 mm stereo jack.

Functions & Features

Features

Convenience

  • Two attached USB and audio cables to connect two PCs
  • Remote toggle button
  • Hotkey commands

Input

  • Two USB ports for one USB mouse and USB keyboard
  • Microsoft IntelliMouse support

Video

  • VGA connector
  • Supports multiple monitor resolutions

Audio

  • Audio port
  • Stereo support

Technical Specifications

General

KVM Connectors

  • Keyboard:
    • 1 x USB Type A female
  • Mouse:
    • 1 x USB Type A female
  • Monitor:
    • 1 x HDB-15 female (blue)
  • Audio:
    • 1 x 3.5 mm Mini-Phone Stereo Jack female (green)
  • Remote control:
    • 1 x 2.5 mm 4 Pin Phone Jack female

Cable Connectors

  • PC:
    • USB Type A male
  • Monitor:
    • HDB -15 male
  • Audio:
    • 3.5 mm Mini-Phone Stereo Jack male (green)

Port Selection

  • Remote Control Button
  • Hotkey commands
  • AP Selection

Resolution

  • 2048 x 1536 (QXGA)
  • 1920 x 1440 (WUXGA)

System Requirements

  • Windows 2000 / XP / Vista / 7 / 8
  • Linux
  • Mac OS (10.3 and higher)

Physical

KVM Cable Length

  • 1.8 m

Dimensions

  • 78 x 56 x 21.5 mm (3.07 x 2.20 x 0.85 inches)

Weight

  • 193 grams (6.81 ounces)

Operating Voltage

  • 5 V DC

Data sheet (KVM-222_A1_Datasheet_01(WW).pdf, 710 Kb) [Превземи]
