HP J9079A Managed ProCurve 1700-8 Switch


1500  ден

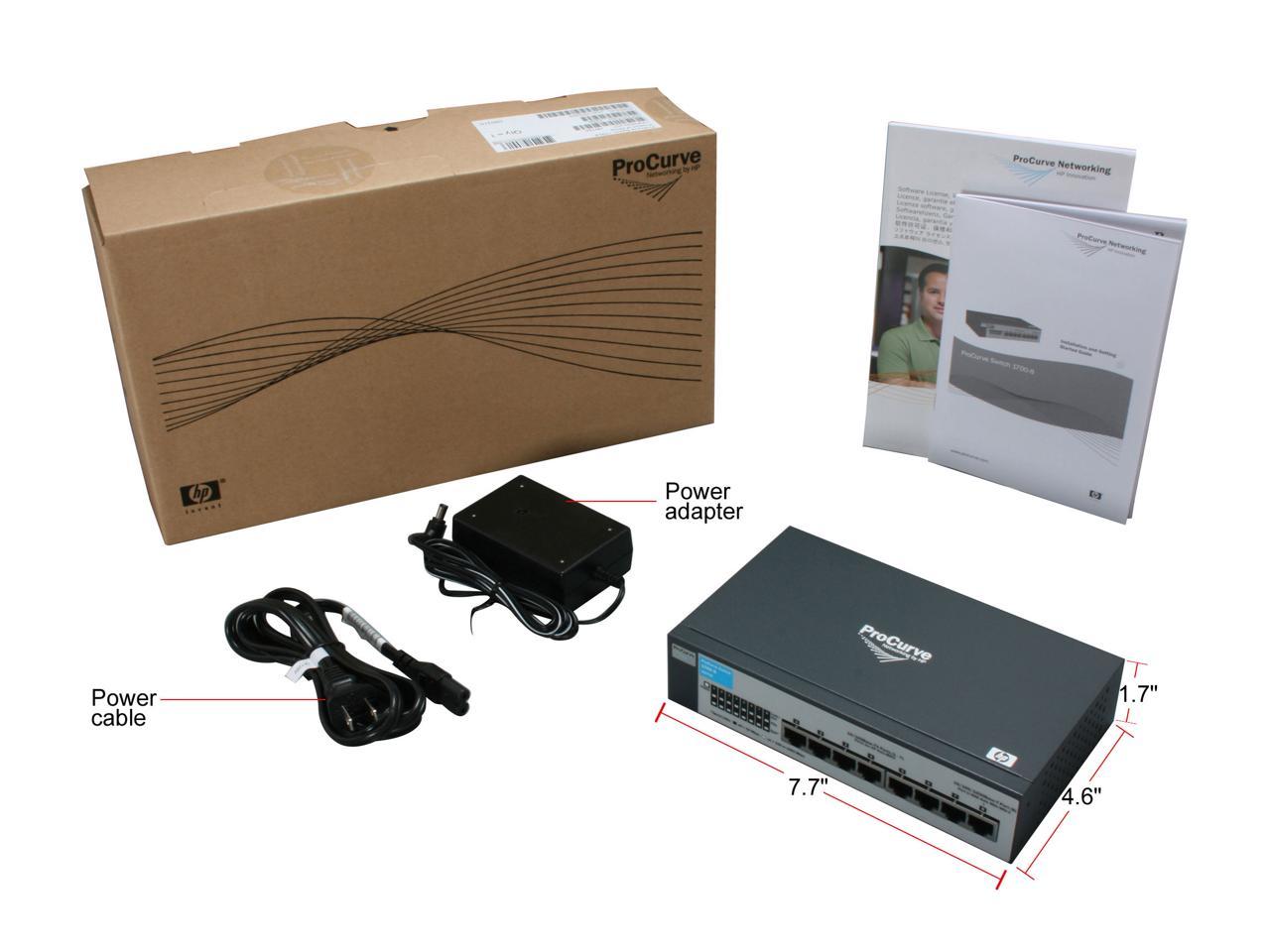

HP J9079A Managed ProCurve 1700-8 Switch

The ProCurve Web Managed Switch 1700-8 ideal for businesses making the transition from unmanaged to managed networks. The ProCurve Switch 1700-8 is a small-form-factor switch with 7 10/100 ports and 1 10/100/1000 port. Ideal for deployment in open spaces, silent operation via a fanless design. The ProCurve Switch 1700-8 enables increased network capabilities without added complexity.

  • Model
  • BrandHP
  • ModelJ9079A
  • Format & Standards
  • FormatExternal
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab
  • Network Management Type Managed
  • Ports & Interface
  • Primary Ports7 x auto-sensing 10/100(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX)
  • Media Type: ProCurve Auto-MDIX
  • Duplex: half or full
  • 1 x auto-sensing 10/100/1000(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)
  • Media Type: IEEE Auto-MDIX
  • Duplex: 10Base-T/100Base-TX: half or full; 1000Base-TX: full only
  • Primary Port Speed10/100Mbps + 1000Mbps
  • Data Transmission
  • MAC Address Table 8K
  • VLAN Support Yes
  • Jumbo Frames No
  • Details
  • Buffer Memory 1 MB flash, 1 KB RAM/ROM capacity; packet buffer size: 144 KB
  • ProtocolsIEEE 802.1p Priority
  • IEEE 802.1Q VLANs
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.3x Flow Control
  • SecurityManagement password: provides security so that only authorized access to the Web browser interface is allowed
  • PoE No
  • StackableNo
  • SNMPNo
  • QoS Yes
  • LACP Yes
  • Layer2
  • Port Mirroring Yes
  • Module SupportNo
  • PowerVoltage: 100-127 / 200-240 VAC
  • Current: 1.0/0.8 A
  • Power consumption: 18 W
  • Frequency: 50 / 60 Hz
  • Features
  • FeaturesResiliency and high availability:
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP): provides link-level redundancy; support for up to 4 trunks on the ProCurve Switch 1700-8, with up to 8 links (ports) per trunk, and support for 12 trunks on the ProCurve Switch 1700-24, with up to 7 links (ports) per trunk
  • Port mirroring
  • Layer 2 switching:
  • VLAN support and tagging: support up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups
  • Quality of Service (QoS):
  • Traffic prioritization: honors priority of traffic based on 802.1p to deliver data to devices based on the priority and type of traffic
  • Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted broadcast traffic on the network
  • Manageability:
  • Intuitive Web interface: enables simple management via an easy-to-use Web browser interface for switch configuration, monitoring, and administration
  • Integration with ProCurve Manager: enables discovery and mapping via ProCurve Manager, available as a free download from the Web
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automated device discovery protocol for easy mapping by network management applications
  • Ease of use:
  • Designed with no fan
  • Comprehensive LED display with per-port indicators: provides an at-a-glance view of status, activity, speed, and full-duplex operation
  • ProCurve/IEEE Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
  • Flexibility:
  • Small form factor: ideal for desktop use; space-efficient for deployment flexibility (1700-8)
  • Dimensions & Weight
  • Dimensions7.7" x 4.6" x 1.7"
  • Weight1.2 lbs
  • Environmental
  • Temperature0ºC to 40ºC (32ºF to 104ºF)
  • Humidity15% - 95%, Non-condensing
