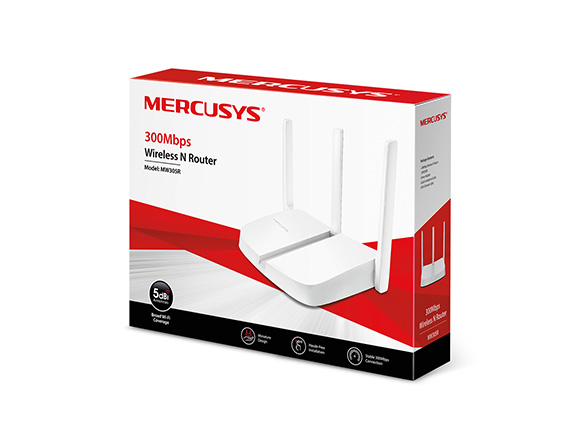

MERCUSYS N300 300Mbps Wireless N Router, 4x10/100Mbps, 3 x 5dBi (MW305R)




720  ден

12355
+

MERCUSYS N300 300Mbps Wireless N Router, 4x10/100Mbps, 3 x 5dBi (MW305R)

  • 300Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads
  • Three 5dBi antennas greatly increase wireless signal strength, size and stability
  • Intuitive webpage guides you through the setup process in minutes
Dimensions (W X D X H)147 mm × 115 mm × 34 mm
Reception Sensitivity• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER
Wireless SecurityWPA-PSK/WPA2-PSK
Guest Network2.4GHz guest network
External Power Supply5VDC/0.6A
Antenna Type3 x 5dBi fixed omni directional antennas
Signal Rate11n: Up to 300Mbps (Dynamic)11g: Up to 54Mbps (Dynamic)11b: Up to 11Mbps (Dynamic)
ButtonReset/WPS button
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.4 - 2.4835GHz
Interfaces3 10/100Mbps LAN ports1 10/100Mbps WAN port
CertificationsCE, ROHS
Package Contents300Mbps Wireless N Router MW305RPower adapter

Quick installation guide
Ethernet cable

EnvironmentOperating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing
Transmission Power<20dBm
Wireless FunctionsWDS bridge
WAN TypeDynamic IP/Static IP/PPPoE/L2TP/PPTP
ManagementParental ControlAccess control

Local management

Remote management
DHCPServer
Port ForwardingVirtual server, UPnP, DMZ
Dynamic DNSDynDNS、NO-IP
Firewall SecurityIP and MAC address binding
ProtocolsIPv4
