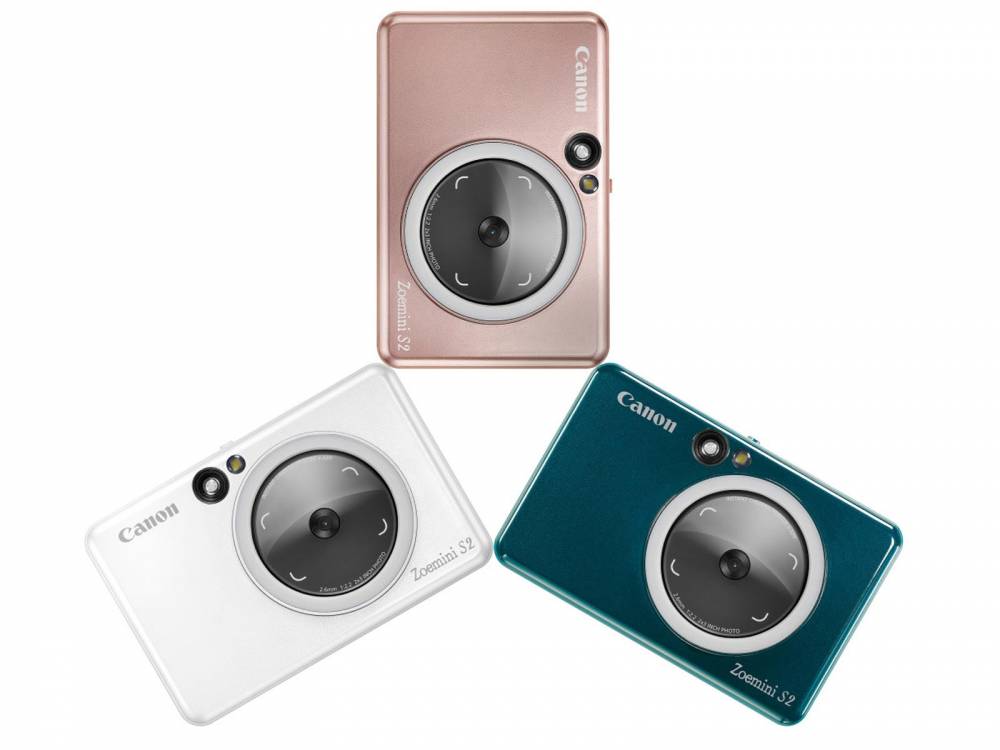

CANON INST CAM PRT ZOEMINI S2 ZV223 DT
Print Technology
ZINK™
Printer Head Life
1000 pages (under 25°C)
Print Speed
Approximately 50 second (Motor Start & Stop, at room temperature 25°C )
Print Resolution
314 x 600 dpi
Borderless Printing
YES
White Border Printing
YES
Filter Printing
YES (Black & White / Vivid Color)
Border Customization
YES (Through Mini Print App)
Printer Connection
Micro USB
Connectivity
Bluetooth 5.0
NFC
iOS (Need 3rd party NFC reader, only available to iPhone 7 or later)
Android (workable with models with NFC support and preloaded NFC reader)
Automatic Paper Sensor
YES
Battery
Built-in Rechargeable lithium polymer Battery, 700mAh
Battery Life
Average 25 photo papers
Auto-Power Off
YES (3mins / 5mins / 10mins) (Setting on APP)
Reset Button
YES
Charging Speed
Approximately 120 minutes (From 0% to fully charged)
Control Panel
1. Power Button
2. Shutter Button
3. Filter Button (Black & White / Vivid Color)
4. Border Button (White Border/ Customized Border)
5. Slide Switch (Landscape without Flash / Portrait with Auto Flash / Selfie with Ring Light)
Memory Card Compatible
YES, MicroSD Card, up to 256GB
Supported Media Type
Canon ZINK® Photo Paper, Canon ZINK® Pre-Cut Sticker
Maximum Paper Size
2.0” x 3.0”
Paper Capacity
Up to 10 sheets of Canon ZINK® photo paper + 1 SmartSheet®
Body Color
Rose Gold / Pearl White / Dark Teal
Body Size (W x H x D)
121 x 80.3 x 22.4 mm
Weight
188g
Recommend Operating, Charging & Storage Temperature (℃)
15 - 32°C (59 - 90°F)
Recommend Operating Humidity (RH)
40-55% RH
Operating Temperature (℃)
5 - 40°C (41 - 104°F)
Operating Humidity (RH)
<70%RH
Camera
Single Still Photo Resolution
8MP
Single Still Photo Format
JPG
Flash Light
YES
Flash Light Range
0.5M - 1.0M
Ring Light
YES (8 LEDs)
Effective Ring Light Range
0.3M- 0.6M
Focusing Range
Fixed (Range: 30cm~∞ )
Focal Length
2.6mm
Focal Length (35mm Film Equivalent)
25.66mm
Zoom
Fixed
Aperture
f/2.2
Sensitivity
Auto (ISO Range : 100 - 1600)
White Balance
Auto
Exposure Adjustment
Auto
Live View
YES (on APP)
Self Timer
YES (OFF / 3sec / 5sec / 10sec) (Setting on APP)
Remote Shutter
YES (on APP)
Customized Camera Sound Indication
YES (Power ON / Power OFF / Shutter) (Setting on APP)
Indicators
Bottom LED (Charging)
Red: Charging
Green: Charging complete
Top LED (Status)
White On : Device is On and Standby
White Blinking : Processing Smartsheet / Preparing Printing / Firmware Updating
Red On : Device is too High Temperture
Red Blinking : Cover Opened / Printer Error / No Paper / Paper Jam
Red/White Looping : Low Battery, Very Low Battery
White Blinking : Device is Booting
Blue Blinking : Smartsheet Error
Cyan On : Device is too Low Temperture
Cyan Blinking : Printer Head Cooling
Magenta On : Mass Storage Mode
Magenta Blinking : SD Card Error
Yellow/Magenta/Cyan/White Looping : Printer is Printing
Filter Selection LED
1) OFF : No
2) On : Black & White Filter
3) On : Vivid Color Filter
White Border LED
ON : Yes
OFF : No
Speaker (Status)
1) Power On
2) Camera Focus Lock
3) Camera Shutter
4) Camera Error (fail to take photo)
5) microSD Card Insert / Eject
6) microSD Card Error
Zink Photo Paper Information
Canon ZINK® Photo Paper
Canon ZINK® Photo Paper (10 sheets per pounch)
2” x 3” photo paper size / Peel-and-sticky back
Storage Environment
Temperature: 0 - 25°C, Humidity: 40-55% RH
Compatible Operating Systems & App
Compatible OS (for Mobile App)
iOS 12.0 or above & Android 6.0 or above
Compatible OS (for Computer)
Windows 7 / 8 / 8.1 / 10, Mac OSX 10.10-10.14
Mobile App
Canon Mini Print
