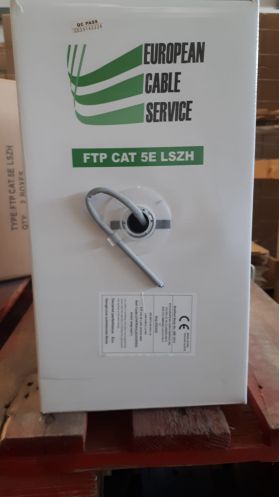

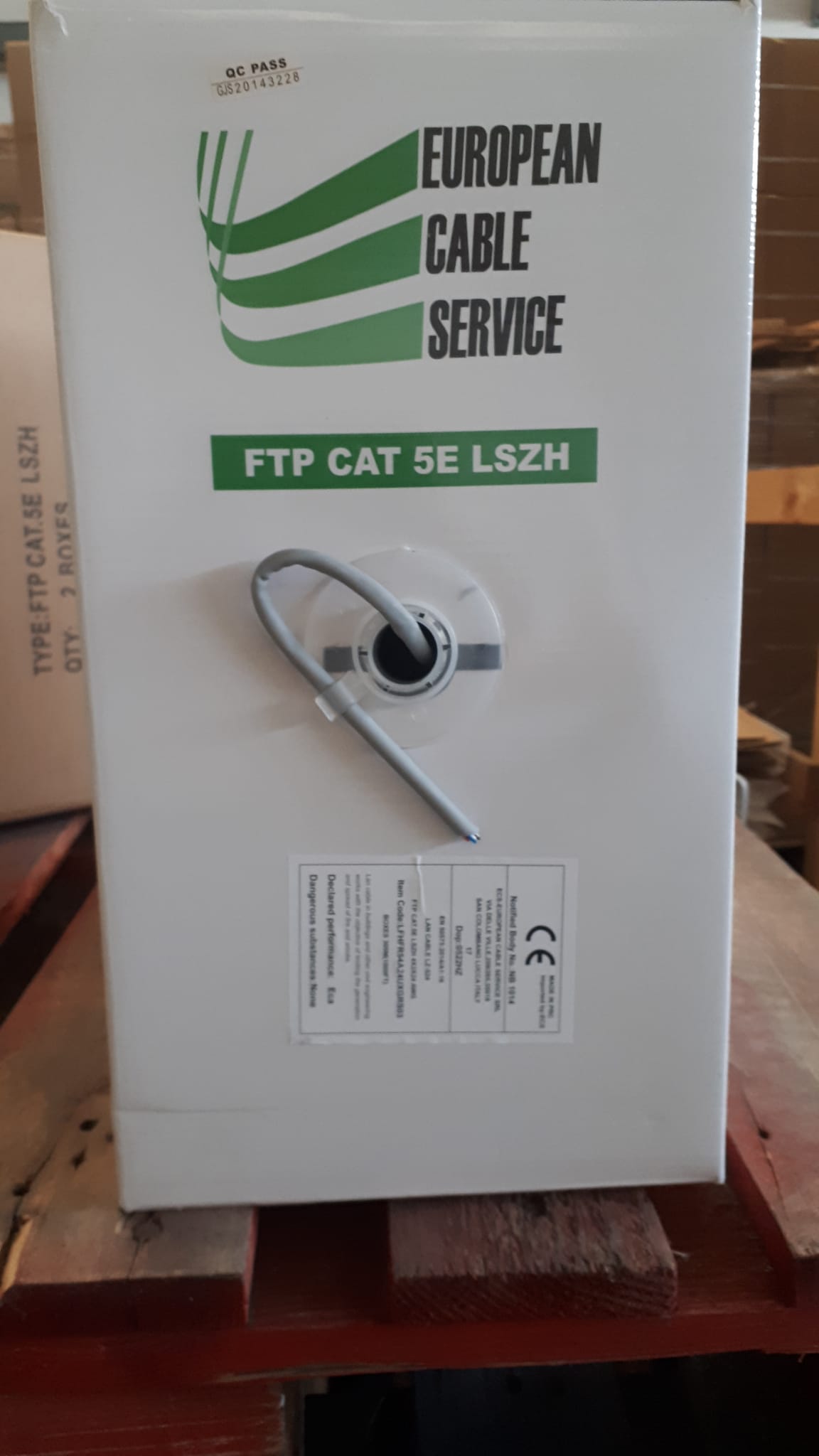

ECS FTP Cable Cat 5E 4x2xAWG24 LSZH grey 305m cardboard-box

ECS




12500  ден

12752
+

ECS FTP Cable Cat 5E 4x2xAWG24 LSZH grey 305m cardboard-box

Construction

  • Conductor 24 AWG bare Cu
  • Insulation HDPE 0.88 ±0.1mm
  • Sheath LSZH grey RAL7001 or White Diam 5.0 ± 0.1mm
  • Printing ECS-UTP CAT.5e 4x2x24AWG LSZH EIA/TIA 568 ISO/IEC 11801 CEI-UNEL 36762 C-4(Uo=400V) WW/YY [ORDER NR]-001m – Eca

Electrical properties

  • Conductor resistance <93.8 Ω/km at 20°C
  • CC Ring resistance <16.8 Ω/100m
  • Mutual capacitance <56pF/m
  • Standard impedance 100 ±15Ω; between 1 MHz and 100 MHz
  • Min bending radius 50mm
  • Operating temperature -20°C +60°C

Rules Applications

  • ISO/IEC 11801-2Ed 10/100BASE-T (IEEE 802.3)
  • ANSI TIA/ EIA 568-B.2 ATM,TP-PMD,ANSIX 39T,5(TP),LSDN,TP-DDI
  • EN 50173 ETHERNET, 1000 BASE-T
  • EN 50288-3-1 GIGABIT-ETHERNEET
  • UL TOKEN RING (IEEE802.5)
