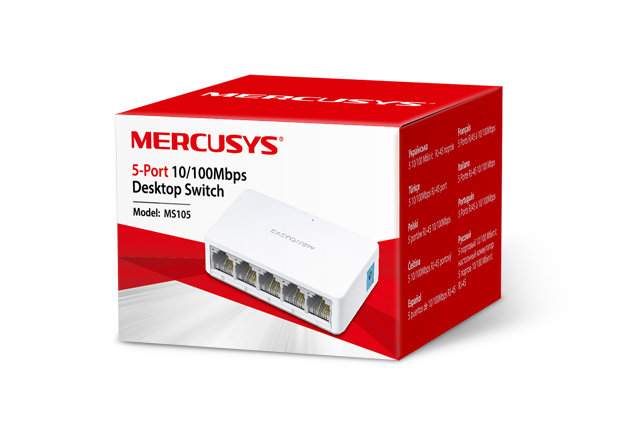

MERCUSYS 5-Port 10/100Mbps Desktop Switch (MS105)
- Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
| External Power Supply | 5V/0.4A |
|---|---|
| Package Contents | 1. 5-Port 10/100Mbps Desktop Switch (MS105) 2. Power Adapter 3. Quick Installation Guide |
| Dimensions (W X D X H) | 82 x 49 x 21 mm |
| Interfaces | 5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3xCSMA/CD |
| Fan Quantity | Fanless |
| Data Rates | 10/100Mbps at half duplex20/200Mbps at full duplex |
| Buffer Capacity | 768Kb |
| Jumbo Frame | 2KB |
| Switching Capacity | 1Gbps |
| LED | Ethernet (1, 2, 3, 4, 5), Power |
| Transfer Method | Store and forward |
| Certifications | CE, RoHS |
