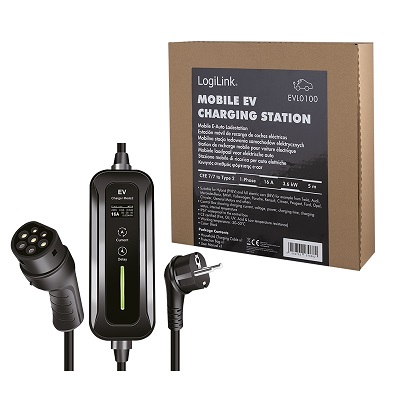

Mobile EV charging station, CEE 7/7 to Type 2, 1-phase, 16 A, 3.6 kW, 5 m (EVL0100)

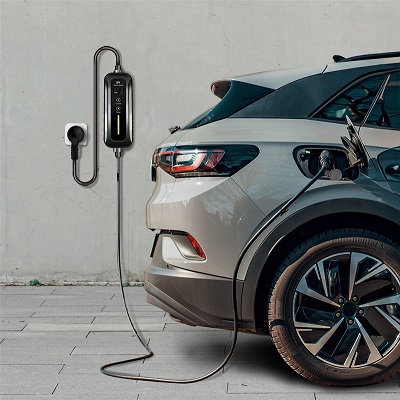

LogiLink's mobile EV charging station (emergency charging cable) offers an intelligent and convenient way to charge electric vehicles. The protective contact plug can be connected to any normal 230 V socket. The vehicle-side connector of the charging cable is compatible with all fully electric vehicles and hybrid vehicles with a Type 2 connection. The LCD display shows the status of charging current, voltage, power, charging time, charging progress and temperature. The cable is the perfect companion for on the go to charge plug-in hybrids (PHEV) and battery electric vehicles (BEV) in an emergency (there is no charging station available).
- Connection 1: protective contact plug (CEE 7/7)
- Port 2: Type 2 charging plug (female)

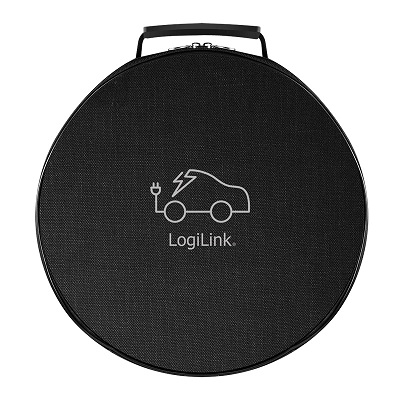

- Cable including carrying bag; Suitable for hybrid (PHEV) and fully electric vehicles (BEV)
- Charging mode according to Mode 2 (IEC 61851-1)
- Plug-in device according to IEC 62196-2
- Cabling standard: EN 50620 (3x2.5 mm² + 1x0.5 mm²)
- CE & TÜV certified (fire, oil, UV, acid & low temperature resistance)
- Charging capacities up to 3.6 kW, 1-phase
- Maximum 16 A charging current at a nominal voltage of 230 V AC (Max. test voltage: 22 A)
- Protection class: control box IP67; Type 2 connector IP65 plugged in, IP54 not plugged in
- Working temperature: -30 to +50 °C
- Plastic housing
- Color: Black
- Cable length: 5 m
- Packaging: Brown Box
- General product data:
- Weight: 1.9kg
