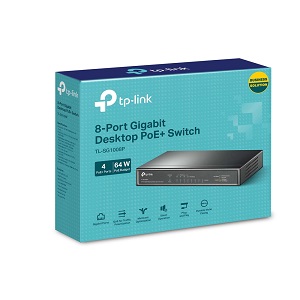

TP-LINK switch, 8x GbE, 4x PoE port, unmanaged, metal, external power supply (TL-SG1008P)




3800  ден

12500
+

TP-LINK switch, 8x GbE, 4x PoE port, unmanaged, metal, external power supply (TL-SG1008P)

The TL-SG1008P is an 8-port gigabit switch. 4 of the ports support PoE function and automatically recognize the applied input voltage and.

Interface
8× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal power adapter
(Output: 54VDC / 1.3A)
Packet Forwarding Rate11.904 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at compliant
• PoE Ports: ports 1–4
• Power budget for all PoE ports: 64 W
Mac Address Table4K
Jumbo Frame16 KB
Switching Capacity16 Gbps
Dimensions ( W x D x H )6.7 × 3.9 × 1.1 in
(171×98×27 mm)
Max Power Consumption• 5.4 W (with no PD connected)
• 75 W (with 64W PD connected)
Max Heat Dissipation• 18.4 BTU/h (with no PD connected)
• 225.8 BTU/h (with 64 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
OTHERS
CertificationCE, FCC, RoHS
Package Contents• TL-SG1008P
• Power Adapter
• Installation Guide
Environment• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
